ERC6010

SERIAL(RS232) DEVICE SERVER
ETHERNET CONVERTER

In automation, telemetry and IoT applications, devices with RS232 port need to be read remotely. Due to the communication distance limitation of the serial port, difficulties and problems arise in automation applications. To eliminate this distance restriction, reading these devices over the Ethernet network may be requested as an alternative. So, such an application is desired, the serial port device will need to communicate via Ethernet. To do this, a serial converter, serial to ethernet conversion, is needed.


In this context, ERC6010 Ethernet serial converter is called a serial device server or serial converter. It allows connecting any port (RS232) to a computer network and monitoring and controlling it over the network. In this way, the need to keep a PC next to the device is eliminated. Using ERC6010, the communication distance problem is solved. While RS232 communication cable legth is limited, it is possible to track and monitor over the internet with today's Ethernet structure. Devices available in the industry such as energy analyzers, uninterruptible power supplies, meters, compressors, etc. can be read without any distance.


Network connection is realized via TCP/IP protocol and can be set as both client and server.

  • TCP/IP Client/Server connection
  • 10/100BaseT Ethernet
  • Dinamik IP(DHCP)
  • RS232 port
  • 300bps-115200bps baudrate
  • 7-8 Databit, Odd-Even parity, 1-2 stop bits
  • Free ViCom Virtual port software
  • ERCManager application for monitorind and setup
  • DC 7-30V power supply
  • Adaptor jack
  • Operating remperature: -40 - + 85°C
  • Supported TCP/IP,DHCP,UDP,ARP,ICMP(ping),DNS protocols
  • 111,8mm x 75,8mm x 26mm  (WxLxH)
  • DIN Rail mount option

Protocols



  • TCP/IP (Transmission Control Protocol-Internet Protocol)
  • UDP (User Datagram Protocol)
  • DHCP (Dynamic Host Configuration Protocol)
  • HTTP (Hypertext Transfer Protocol)
  • ICMP (Internet Control Message Protocol)
  • ARP (Address Resolution Protocol)
  • DNS (Domain Name System)

Ordering options


ERC6010XY


X:Adaptor option [B: W/O adaptor, F: with +5V DC adaptor included]


Y: Rail mount option: [N: none, D: Rail mount device]


ERC6010BD [Default order code , without dc adaptor, rail mounted]

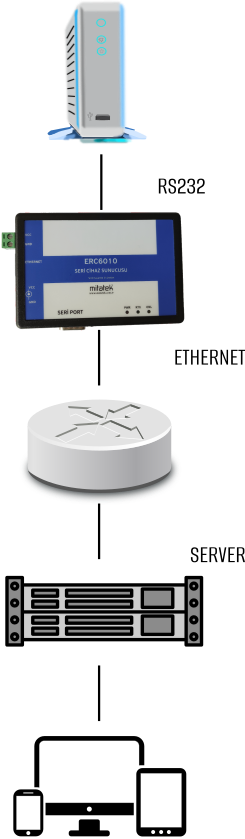

Some of applications with using ERC6010 :


  • Energy analyzer monitoring
  • Automatic Meter Reading
  • PLC software update
  • PBX central phone data backup
  • UPS monitoring
  • Remote temperature-humudity control
ERC555 Uygulama
ERC555 Uygulama
