ERC525

SERIAL(TTL) DEVICE SERVER
ETHERNET CONVERTER OEM MODULE

ERC525 seri cihaz sunucusu OEM

ERC525 is the serial device server OEM Module in order to be used in any design to communicate a microcontroller over ethernet without any protocol knowledge. It converts the device plugged to have ethernet based communication so any PC in the network can communicate to the product. With this feature distance problem is solved.


The technical features are identically same as ERC555 except serial port voltage levels. ERC525 can be connected to any uC with TTL levels.

  • TCP/IP mode Client/Server
  • TTL UART port
  • 10\100 BaseT (Ethernet connector is bundled)
  • Dynamic IP(DHCP)
  • Access with  hostname (NetBIOS)
  • 300bps-115200bps serial port baudrate
  • 7-8 Databit, Odd-Even parity, 1-2 stop bits with hardware flow control
  • ViCom  virtual serial port software
  • Web interface for montiroing and setup
  • DC 3.3V supply
  • Operating remperature: -40 - + 85°C
  • TCP/IP,DHCP,UDP,ARP,ICMP(ping),DNS,NetBIOS protocols
  • 60mmx34mmx13mm (W,L,H)

ERC525 sample applications:


  • Remote monitoring
  • Automatic Meter Reading
  • PLC software update
  • PBX central phone data backup
  • UPS monitoring
  • Remote temperature-humudity control

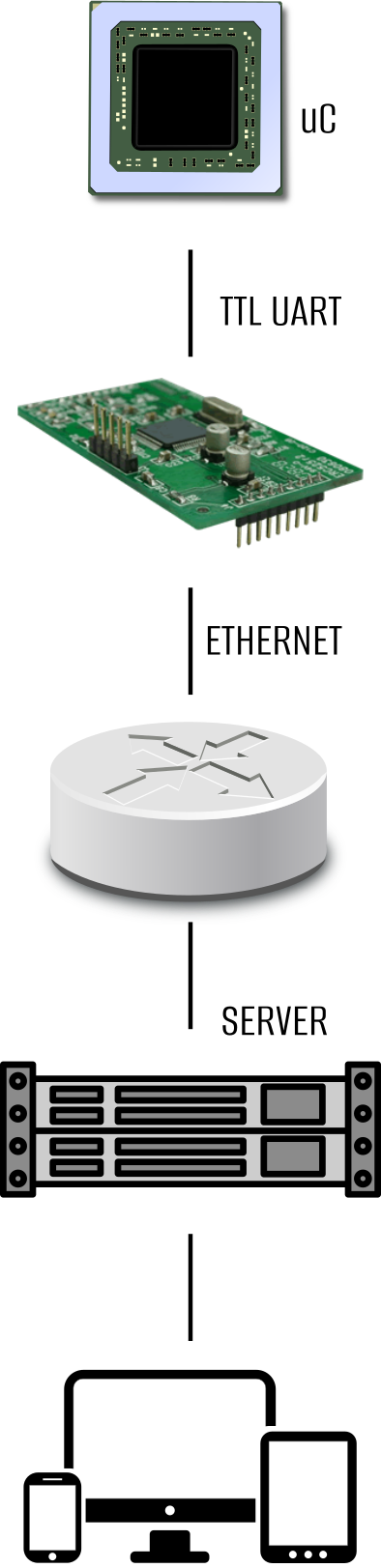

ERC525 Uygulama

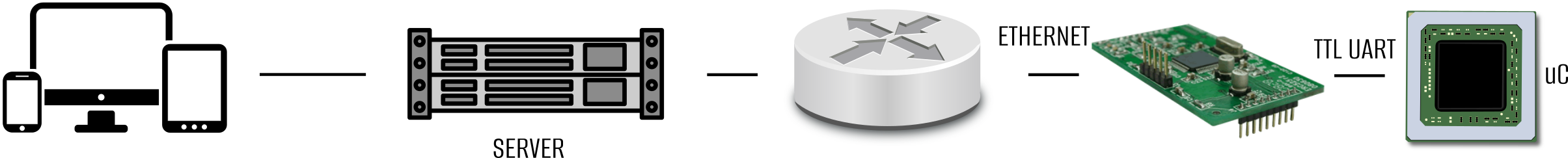

ERC525 Uygulama
